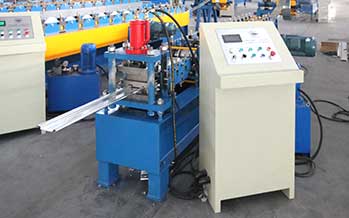

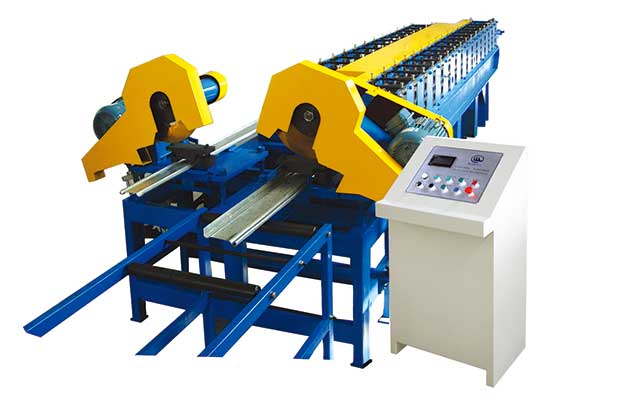

Roller Shutter Door Forming Machine
Suitable for thickness 0.8-1.2mm
Work speed 0-15m/min
Accurate size, perfect surface
Various shapes can be customized
Automatic PLC control system
Contact by office@willingint.com or 0086 13588279758
Chat Now
Message

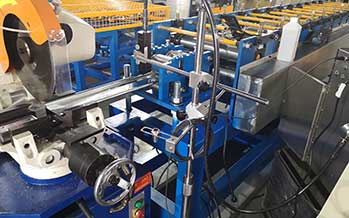

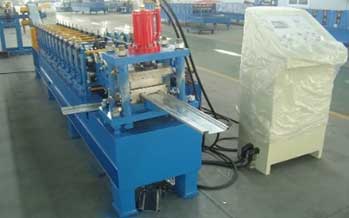

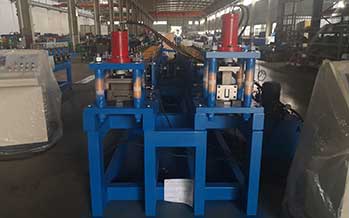

E-mailDETAIL PICTURE

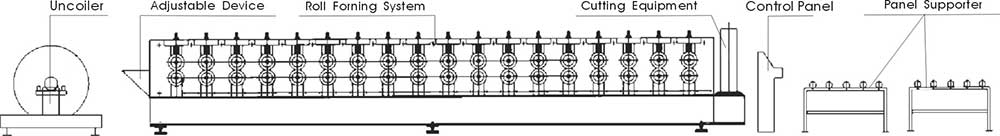

PROCESS FLOW
PARAMETER
|
Material |
Type |
Galvanized steel sheet |
|
Thickness（mm） |
0.8-1.2 |
|
|
Yield stress（Mpa） |
230-300 |
|
|
Max. Forming speed（m/min） |
0-15m/min |
|
|
Roller material |
45# steel with hard chrome treatment |
|
|
Roller driven type |
Chain transmission |
|
|
Controller |
PLC |
|
|
Operation |
Touch screen and button |
|
|
Hydraulic system pressure（Mpa） |
12 |
|
|
Hydraulic station motor power（KW） |
4 or 5.5 |
|
|
Main motor power（KW） |
3 or 4 |
|
|
Total weight（Kg） |
About 2000 |
|
